Here is the comprehensive, start-to-finish guide. This consolidates everything into a single, executed plan to get your automation running from scratch.
The Goal
Automate a security alert process that:
- Scans Microsoft Entra ID (Azure AD) sign-in logs every 48 hours.
- Filters for Error 50053 (Account Locked / Brute Force attempts).
- Sends an HTML email report with:
- A summary table (User, Total Events, Last Attempt).
- A detailed CSV attachment of all raw logs.
Phase 1: Environment Setup
1. Create an Automation Account

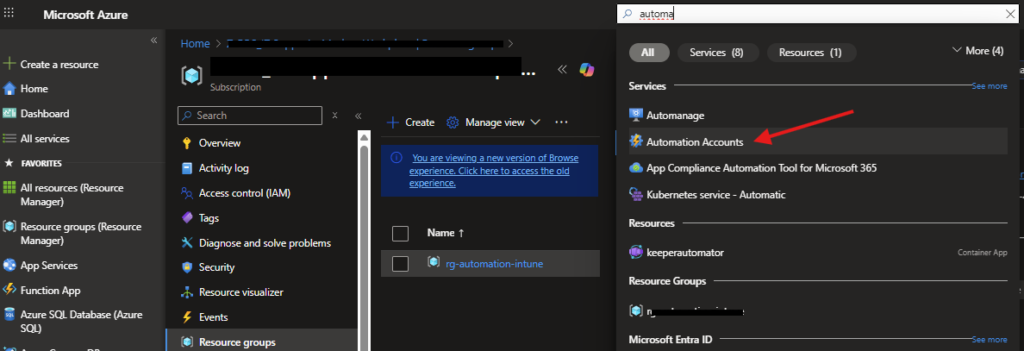

- Go to the Azure Portal and search for Automation Accounts.

- Click + Create.
- Name:
Security-Automation-01(or similar). - Region: Choose your preferred region.
- Managed Identity: Ensure « System assigned » is selected (default).
- Click Review + Create.
2. Install Required Modules
Your script relies on specific Microsoft Graph modules that are not installed by default. You must install them in this exact order:

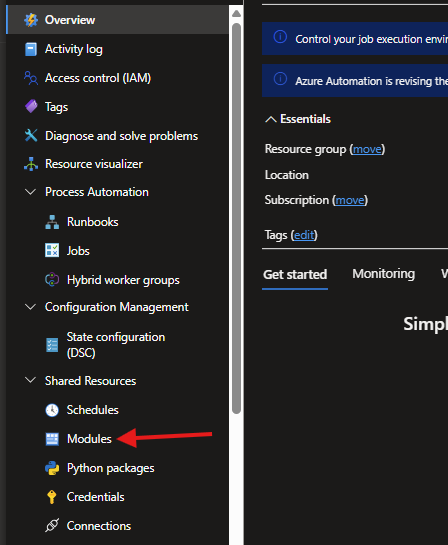

- Go to your Automation Account -> Modules (under Shared Resources).

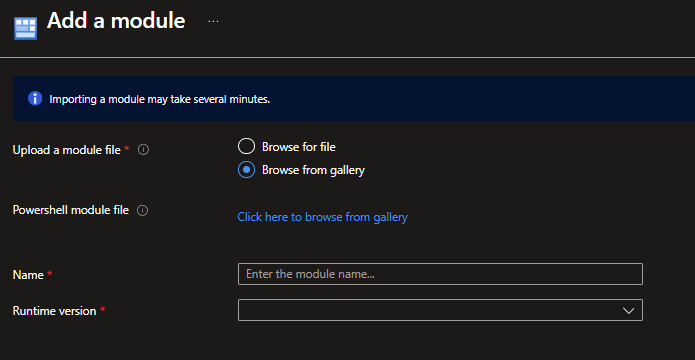

- Click + Add a module -> Browse from gallery.
- Module 1: Search for
Microsoft.Graph.Authentication.

- Runtime version: Select 5.1.
- Click Import and WAIT (approx. 5 mins) until status is « Available ».
- Module 2: Search for
Microsoft.Graph.Reports.- Runtime version: Select 5.1.
- Click Import and WAIT.
- Module 3: Search for
Microsoft.Graph.Users.Actions.- Runtime version: Select 5.1.
- Click Import and WAIT.
3. Grant Permissions (The « Ghost Badge »)
The Automation Account needs permission to read logs and send emails. Run this PowerShell script locally on your computer (Run as Administrator) to assign these permissions:
PowerShell
# Run this LOCALLY on your PC to set up the permissions
# ---------------------------------------------------------
$AutoAccountName = "YourAutomationAccountName" # <--- UPDATE THIS
$ResourceGroup = "YourResourceGroupName" # <--- UPDATE THIS
# ---------------------------------------------------------
Connect-AzAccount
Connect-MgGraph -Scopes "AppRoleAssignment.ReadWrite.All", "Application.Read.All"
# 1. Get Automation Account Identity
$AutoAccount = Get-AzAutomationAccount -ResourceGroupName $ResourceGroup -Name $AutoAccountName
$ManagedIdentityObjectId = $AutoAccount.Identity.PrincipalId
# 2. Get Graph Service Principal
$GraphAppId = "00000003-0000-0000-c000-000000000000"
$GraphSP = Get-MgServicePrincipal -Filter "appId eq '$GraphAppId'"
# 3. Assign Permissions
$Permissions = @("AuditLog.Read.All", "Directory.Read.All", "Mail.Send")
foreach ($Perm in $Permissions) {
$AppRole = $GraphSP.AppRoles | Where-Object { $_.Value -eq $Perm }
New-MgServicePrincipalAppRoleAssignment -PrincipalId $ManagedIdentityObjectId `
-ResourceId $GraphSP.Id -AppRoleId $AppRole.Id
Write-Output "Assigned: $Perm"
}
Phase 2: The Runbook Script
- Go to Automation Account -> Runbooks.
- Click + Create a runbook.
- Name:
Monitor-BruteForce-50053. - Runbook type: PowerShell.
- Runtime version: 5.1.
- Paste the following code (make sure to update the email addresses at the top):
PowerShell
<#
.DESCRIPTION
Retrieves Azure AD Sign-in logs for Error Code 50053 (Account Locked)
and sends an HTML email report with CSV attachment.
#>
# ---------------- CONFIGURATION ---------------- #
# UPDATE THESE VARIABLES
$SenderEmail = "admin@yourdomain.com" # Must be a real mailbox
$RecipientEmail = "security@yourdomain.com" # Who gets the alert
$LookbackHours = 48 # Matches the schedule frequency
# ----------------------------------------------- #
try {
# 1. Authenticate using Managed Identity
Write-Output "Connecting to Microsoft Graph..."
Connect-MgGraph -Identity
# 2. Define Time Range
$EndDate = Get-Date
$StartDate = $EndDate.AddHours(-$LookbackHours)
$StartDateIso = $StartDate.ToString("yyyy-MM-ddTHH:mm:ssZ")
# 3. Query Sign-in Logs (Error 50053)
Write-Output "Querying Sign-in logs for error 50053 since $StartDateIso..."
$Filter = "createdDateTime ge $StartDateIso and status/errorCode eq 50053"
$SignIns = Get-MgAuditLogSignIn -Filter $Filter -All -Property CreatedDateTime,UserPrincipalName,AppDisplayName,IpAddress,Status,Location
if ($SignIns.Count -eq 0) {
Write-Output "No brute force attempts found. Exiting."
return
}
Write-Output "Found $($SignIns.Count) events."
# ---------------------------------------------------------
# PART A: Create "User Summary" (Recap)
# Groups by user to show unique impacted accounts
# ---------------------------------------------------------
$RecapData = $SignIns | Group-Object UserPrincipalName | ForEach-Object {
$LatestEvent = $_.Group | Sort-Object CreatedDateTime -Descending | Select-Object -First 1
[PSCustomObject]@{
User = $_.Name
'Last Attempt' = $LatestEvent.CreatedDateTime
'Total Events' = $_.Count
'Last IP' = $LatestEvent.IpAddress
}
}
# ---------------------------------------------------------
# PART B: Create "Detailed Logs" (For CSV & Lower Table)
# ---------------------------------------------------------
$ReportData = New-Object System.Collections.Generic.List[PSObject]
foreach ($log in $SignIns) {
$row = [PSCustomObject]@{
TimeUTC = $log.CreatedDateTime
User = $log.UserPrincipalName
IP = $log.IpAddress
Location = "$($log.Location.City), $($log.Location.CountryOrRegion)"
App = $log.AppDisplayName
}
$ReportData.Add($row)
}
# 4. Generate CSV Attachment
$CsvFilePath = "$($env:TEMP)\BruteForceReport.csv"
$ReportData | Export-Csv -Path $CsvFilePath -NoTypeInformation
$CsvBytes = [System.IO.File]::ReadAllBytes($CsvFilePath)
$CsvBase64 = [Convert]::ToBase64String($CsvBytes)
# 5. Generate HTML Tables
$HtmlTableRecap = $RecapData | ConvertTo-Html -Fragment
$HtmlTableDetail = $ReportData | ConvertTo-Html -Fragment
# 6. Build Email Body
$EmailBody = @"
<html>
<head>
<style>
body { font-family: 'Segoe UI', Arial, sans-serif; font-size: 14px; }
h2 { color: #d9534f; }
h3 { color: #333; margin-top: 20px; border-bottom: 2px solid #ddd; padding-bottom: 5px; }
table { border-collapse: collapse; width: 100%; margin-bottom: 20px; }
th { background-color: #f2f2f2; border: 1px solid #ddd; padding: 8px; text-align: left; }
td { border: 1px solid #ddd; padding: 8px; }
tr:nth-child(even) { background-color: #f9f9f9; }
</style>
</head>
<body>
<h2>⚠️ Security Alert: Account Lockouts Detected</h2>
<p>We detected <strong>$($SignIns.Count)</strong> failed sign-in attempts (Error 50053) in the last $LookbackHours hours.</p>
<h3>👤 User Summary (Recap)</h3>
<p>The following users are impacted:</p>
<table>
$HtmlTableRecap
</table>
<h3>📝 Detailed Event Log</h3>
<table>
$HtmlTableDetail
</table>
<p><em>Please see the attached CSV for raw data.</em></p>
</body>
</html>
"@
# 7. Send Email
$Message = @{
Subject = "Security Alert: Brute Force Recap ($($RecapData.Count) Users Impacted)"
Body = @{ ContentType = "HTML"; Content = $EmailBody }
ToRecipients = @( @{ EmailAddress = @{ Address = $RecipientEmail } } )
Attachments = @( @{
"@odata.type" = "#microsoft.graph.fileAttachment"
Name = "SignIn_50053_Report.csv"
ContentType = "text/csv"
ContentBytes = $CsvBase64
})
}
Write-Output "Sending email..."
# Note: SaveToSentItems:$false prevents the 'False' parameter error
Send-MgUserMail -UserId $SenderEmail -Message $Message -SaveToSentItems:$false
Write-Output "Process Completed Successfully."
} catch {
Write-Error "An error occurred: $_"
}
- Save and test and then Publish the Runbook.
Phase 3: Scheduling

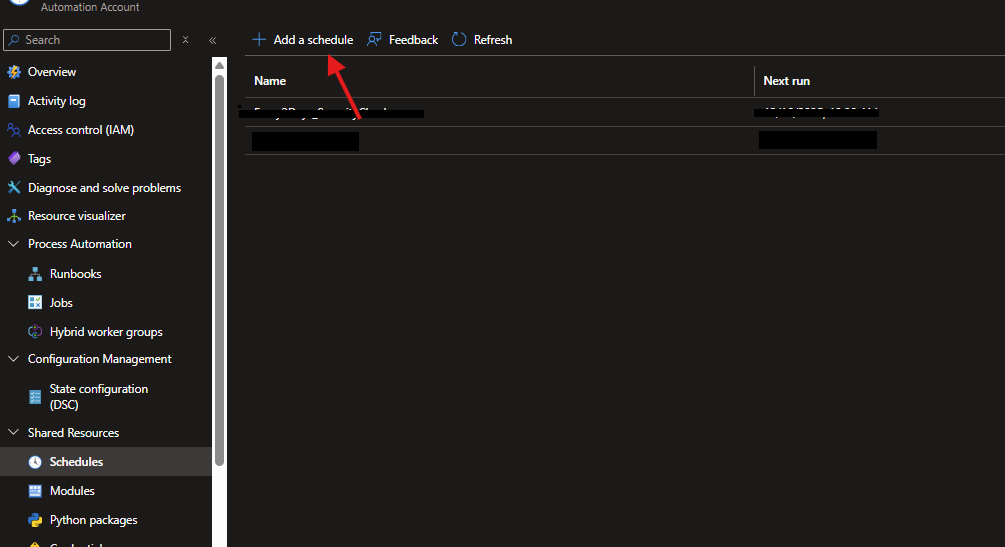

- In your Automation Account, go to Schedules -> + Add a schedule.
- Name:
Every_2_Days. - Recurrence: Recurring -> Recur every 2 Days.
- Create.
- Go back to your Runbook -> Link to schedule.
- Select the schedule you just created.
Troubleshooting Checklist
- Error:
Get-MgAuditLogSignIn not recognized- Fix: You missed installing the
Microsoft.Graph.Reportsmodule.
- Fix: You missed installing the
- Error:
Send-MgUserMail not recognized- Fix: You missed installing the
Microsoft.Graph.Users.Actionsmodule.
- Fix: You missed installing the
- Error:
Positional parameter... 'False'- Fix: Ensure the script says
-SaveToSentItems:$false(with the colon).
- Fix: Ensure the script says
- No Email Received?
- Fix: Check if the
$SenderEmailis a valid mailbox and that your Managed Identity has theMail.Sendpermission assigned.
- Fix: Check if the
You now have a fully automated « set it and forget it » security monitor!
